HAIBIKE ALLMTN CF 9
Uni red/black/platinum – glossy 2026
Maximum power through the mountains. That’s what the HAIBIKE ALLMTN CF 9 delivers – down to the last bolt. A sporty eMTB that impresses with peak all-mountain performance and clever engineering. To get the most out of the powerful Bosch Performance CX drive system, we’ve mounted the motor inverted inside the carbon frame. This allows for improved heat management and greater efficiency when your rides get serious. A purpose-built kinematic system with a horizontal shock, together with the mullet wheel mix and the 160mm RockShox fork, turns rough downhill sections into smooth forest trails. The 800Wh battery offers lasting power and can be extended by 250Wh with an optional range extender. Grippy SRAM DB8 disc brakes round off this strong all-mountain setup. Perfect conditions for alpine adventures with maximum power.
- Carbon Frame
- Rockshox Lyrik base 160mm Fork
- Rockshox Deluxe Select + Rear Shock
- Bosch performance Line CX Motor
- 800Wh Powertube battery
Bike Geometry
- Bottom bracket drop [mm]: 13.5 mm
- Chain stay length [mm]: 450 mm
- Fork total length [mm]: 44 mm
- Head tube angle: 65 degrees
- Head tube length [mm]: 120 mm
- Reach [mm]: 456 mm
- Stack [mm]: 640 mm
- Stand over height [mm]: 770 mm
- Seat tube angle: 74.2 degrees
- Seat tube length [mm]: 430 mm
- Top tube length [mm]: 592 mm
- Wheelbase [mm]: 1240 mm
Brake system
- Brake Front Mount: Post Mount
- Brake Rear Mount: Post Mount
- Brake Front Description: Sram, Hydraulic Disc brake, DB8 Stealth, 4 pistons, 220 mm
- Brake Rear Description: Sram, Hydraulic Disc brake, DB8 Stealth, 4 pistons, 200 mm
- Brake Lever Description: Sram, DB8 Stealth-BL
- Brake Rotor Description: Sram, DB Rotor Centerline 220 / 200 mm, 6 bolt Disc
Drivetrain
- Cassette Teeth: 10-52T
- Crank Arm length: 160
- Crankset Teeth: 36T
- Crankset Type: single
- Pedal Inclusive: Yes
- Cassette Description: Sram, XS-1275 Eagle T-Type, XD
- Chain Description: Sram, Chain, GX Eagle T-Type 12s
- Chain Guide Description: Winning, WI-38L-95 Chainguide
- Crankset Description: XLC, CR-E18 CRNKS + SRAM CR T-Type Bosch DU38, DM
- Derailleur Rear Description: Sram, S1000 Eagle AXS T-Type 12s, wireless
- Gear Description: Sram, Derailleur
- Pedal Description: XLC, Flat Pedal PD-M29 w/ Reflector + integrated Pins
- Shifter Right Description: Sram, Triggershift, AXS Pod Controller
E-bike components
- Battery Capacity: 800 Wh
- Battery Location: Powertube
- Motor Torque [nm]: 85 Nm
- Motor Location: Center
- Battery Description: Bosch, InTube 800Wh
- Charger Description: Bosch, Charger 4A 220-240V
- Display Description: Bosch, Kiox 400C, Kiox 400C + Mini Remote
- Motor Description: Bosch, Performance Line CX, Performance Line CX
Frame and more
- Framesize: 43 cm
- Framesize Convection: M
- Max loadable weight (KG): 135 kg
- Front Fork Type: Suspension
- Suspension Type: Fully
- Travel Front: 160 mm
- Travel Rear: 150 mm
- Front Fork Description: Rockshox, Lyrik Base Rush RC, DebonAir+ 160 mm
- Frame Description: High, Carbon, Uni
- Shock Description: Rockshox, Deluxe Select+ RT 230x60mm, Standard, DebonAir+
Handlebar and Saddle
- Handlebar Diameter: 35 mm
- Handlebar Material: Aluminium
- Handlebar Rise: 20
- Handlebar Width: 800 mm
- Seatpost Material: Aluminium
- Seatpost Travel (mm): 170 mm
- Stem Length: 40 mm
- Handgrip Description: XLC, GR-S34 Gravity Grip
- Handlebar Description: XLC, Riser Bar, HB-M34, Dia. 35 mm, Rise: 20 mm, backsweep 9°
- Headset Description: Acros, Semi-integrated, ICR Top cup / bottom BlockLock ZS56/ZS56
- Saddle Description: Prologo, Proxim W450 Performance 145 mm
- Seatpost Description: XLC, Dropperpost, Dropper SP-T21, Dia. 34.9 mm, Travel: 170 mm, 495 mm
- Stem Description: XLC, ST-M50, Dia. 35 mm, L: 40 mm, A-Head
Lighting
- Brake Light: No
Wheels and wheel components
- Hub Front Description: XLC, HF-M55 Boost 15×110 mm, 32H, 6 bolt Disc
- Hub Rear Description: XLC, HR-M55 Boost 12×148 mm, 32H, 6 bolt Disc, XD
- Rim Description: XLC, WR-M49 SL Disc 30/622 32H 6,5 mm Valve
- Rim Rear Description: XLC, WR-M47 SL Disc 30/584 32H 6,5 mm Valve
- Spoke Description: Sapim, Race Dia. 2.0, J-Bend
- Tyre Description: Continental, Kryptotal-Fr, Enduro Soft, foldable skin SL, 60-622
- Tyre Rear Description: Continental, Xynotal, Enduro Soft, foldable skin SL
- Wheelsize Description: 29, 27.5
Description
Powering through the mountains with ease. This is the motto our new ALLMTN CF 9 lives by – down to every last bolt. A sporty eMTB designed to deliver outstanding all-mountain performance, backed by clever engineering. To maximise the potential of the powerful Bosch Performance CX motor, we’ve rotated the motor in the carbon frame, providing better heat management and improved efficiency when your rides get tough. The newly developed kinematics with a horizontal shock, combined with the mullet wheel setup and 160mm RockShox fork, transform even rough downhill runs into smooth forest trails. And the 800Wh battery provides plenty of range, with the option to add 250Wh via a Range Extender for even longer rides. The ideal setup for long alpine adventures with maximum power.
Key Features

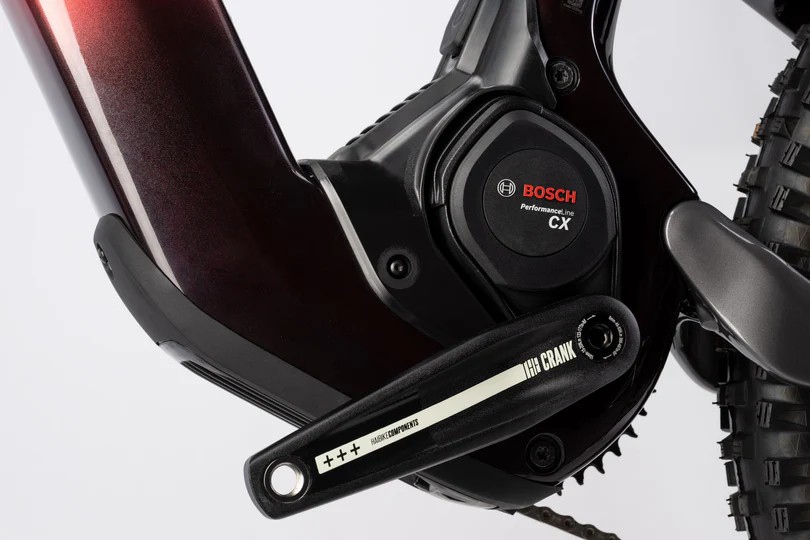

Powerful Bosch Motor
Bosch Performance Line CX motor providing 85Nm of torque

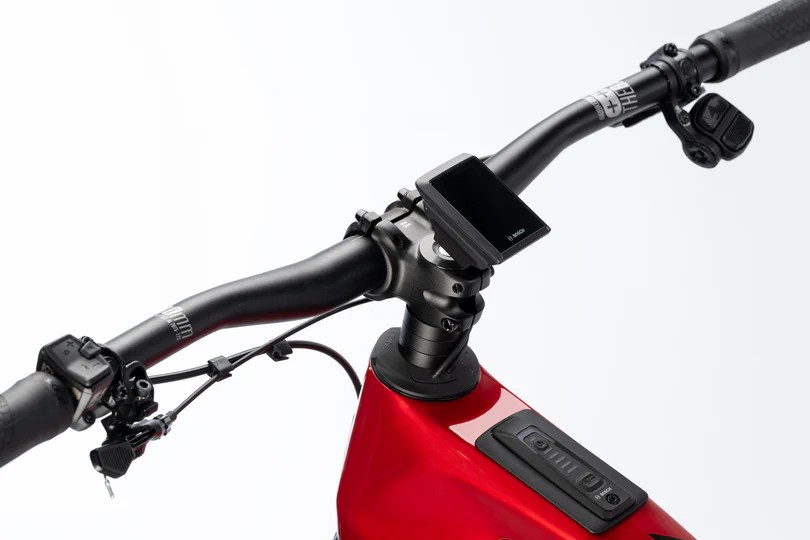

Bosch Kiox 300 + Mini Remote
Clever and intuitive Bosch Kiox 300 controls with bar mounted mini remote for easy operation

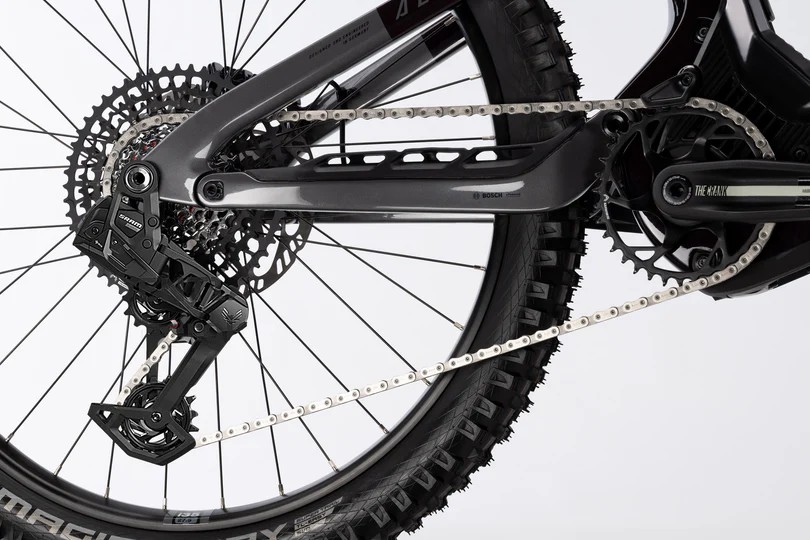

SRAM AXS T-Type Transmission
Tough and reliable SRAM AXS T-Type Transmission 12 speed electronic drivetrain
