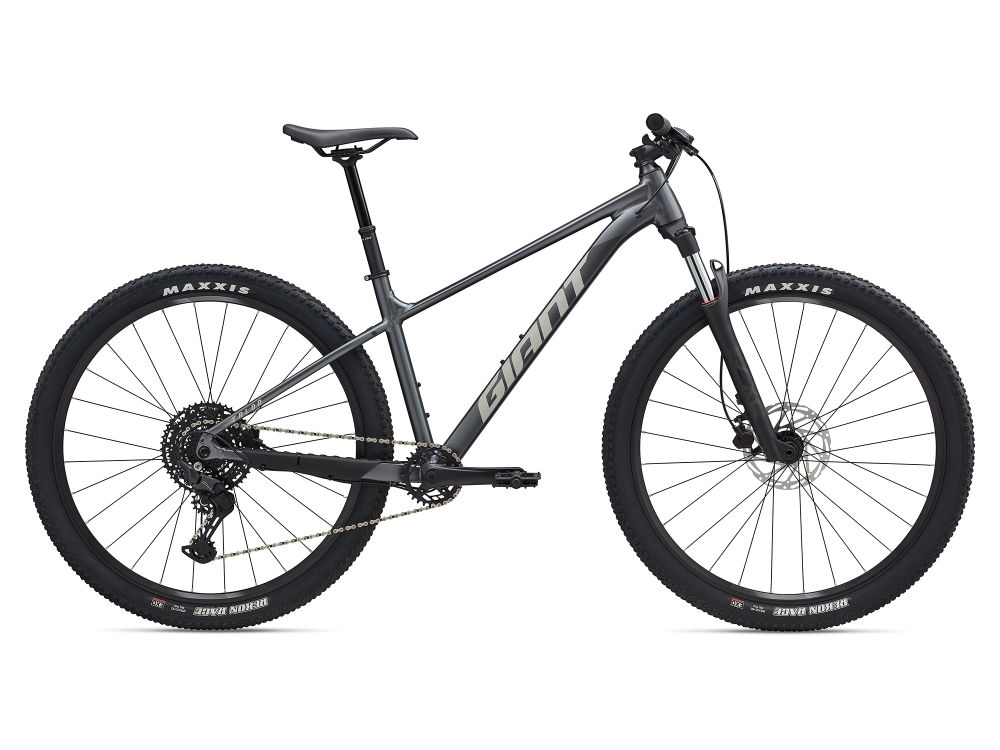

The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs, and a 1x drivetrain, this aluminium hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models

Key Performance Factors

Modern MTB Design

Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models

Off-Road Control

New geometry is optimised for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tyres (up to 2.4-inch) for traction and grip on technical terrain.

Light and Durable

All-new ALUXX aluminium frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.

Specifications

Sizes

27.5: XS,S 29: M,L,XL,XXL
Colours

Gloss Frost Silver, Gloss Beeswax, Gloss Panther
Frame

ALUXX-grade aluminium, disc
Fork

SR Suntour XCE, QR, steel steerer XS&S: 80mm travel (27.5) M-XXL:100mm travel (29)
Shock

N/A
Handlebar

Giant Connect Trail, 31.8mm XS&S: 690mm (27.5) M-XXL: 780mm (29)
Stem

Giant Sport, 7-degree rise
Seatpost

Giant Sport, 30.9mm
Saddle

Giant ErgoContact Trail
Pedals

MTB caged
Shifters

Shimano Altus, 2×8
Front Derailleur

Shimano Altus
Rear Derailleur

Shimano Acera
Brakes

Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm
Brake Levers

Tektro HDC M275
Cassette

Shimano Altus HG31, 11×34
Chain

KMC 8.3
Crankset

Shimano Altus FC-M315, 22/36
Bottom Bracket

VP cartridge
Rims

Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
Hubs

[F] QR alloy, sealed bearing, [R] Giant Tracker hub, 12×142 thru axle, 24-pawl drive
Spokes

stainless, 14g
Tyres

Maxxis Ikon 27.5×2.2 or Maxxis Ikon 29×2.2, wire bead
Extras

–
Max Tyre Clearance

2.4″

Every effort has been made to ensure accuracy throughout this website. However, Giant reserves the right to change bike specifications, features, prices and colours without prior notice.

Highlights

The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminium hardtail is everything an aspiring MTB rider needs to evolve and advance.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

S (29″)

163 cm 172 cm
M (29″)

169 cm 179 cm
L (29″)

176 cm 186 cm
XL (29″)

183 cm 193 cm
XXL (29″)

190 cm 200 cm
XS (27.5″)

155 cm 166 cm
S (27.5″)

163 cm 172 cm

		S (29″)	M (29″)	L (29″)	XL (29″)	XXL (29″)	XS (27.5″)	S (27.5″)
A	Seat Tube Length (MM)	380	420	450	480	500	345	375
B	Seat Tube Angle	74.5°	74.5°	74.5°	74.5°	74.5°	74.0°	74.0°
C	Top Tube Length (MM)	581	604	629	653	676	542	562
D	Head Tube Length (MM)	95	105	125	140	155	90	90
E	Head Tube Angle	67.5°	67.5°	67.5°	67.5°	67.5°	67.0°	67.0°
F	Fork Rake (MM)	44	44	44	44	44	44	44
G	Trail (MM)	108.9	108.9	108.9	108.9	108.9	105.2	105.2
H	Wheelbase (MM)	1139	1164	1191	1217	1242	1084	1104
I	Chain Stay Length (MM)	455	455	455	455	455	440	440
J	Bottom Bracket Drop (MM)	55	55	55	55	55	45	45
K	Stack (MM)	597	606	625	639	653	548	548
L	Reach (MM)	415	436	456	476	495	385	405
M	Stand Over Height (MM)	715	709	709	710	707	684	684
N	Handlebar Width (MM)	690	690	690	690	690	690	690
O	Stem Length (MM)	50	60	70	80	90	40	50
P	Crank Length (MM)	170	170	170	175	175	170	165
Q	Wheel Size	29	29	29	29	29	27	27
Q	Wheel Size	29	29	29	29	29	27	27
